Large Capacity Electric Mills

Our electric high-capacity roller mills are the perfect solution to processing large amounts of grain or corn livestock feed. Precise roll corrugations ensure uniform particle sizes, even at high volumes. All of our high-capacity roller mills feature heavy-duty rolls to maintain durability and are available in several profile sizes and designs to choose from. Adjusting the capacity of the ABC 900 Large Capacity Electric Roller Mill speed is determined by the type of feed you are processing.

Features

•  Large volume processing

•  9", 12" or 14" inch diameter rolls up to 36", 48" or 54" in length
•  Corrugations available for the right particle size
    from coarse to fine

•  Complete unit includes the basic mill with fast roll,
    belt drive, motor mount, mill and motor pulleys

ABC1800

Roll Configuration                    Dry Corn                High Moisture Corn                 Soybeans                    Milo                    Small Grains

           4                           1800 bsh/hr              1600 bsh/hr

         6.5                          1350 bsh/hr              1200 bsh/hr                  1080 bsh/hr          1200 bsh/hr           900 bsh/hr

           8                           1170 bsh/hr              1040 bsh/hr                    930 bsh/hr          1080 bsh/hr           810 bsh/hr

          10                            990 bsh/hr               880 bsh/hr                    780 bsh/hr            970 bsh/hr           720 bsh/hr

Specifications

Roll Size:  9"x 34"

Weight:  1200 lbs

Horsepower:  30

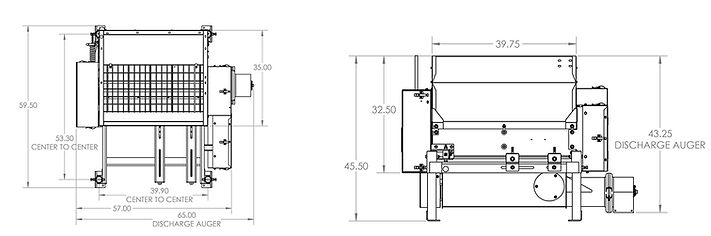

Dimensions


ABC3600

Roll Configuration                    Dry Corn                High Moisture Corn                 Soybeans                    Milo                     Small Grains

           4                           3600 bsh/hr              3200 bsh/hr

         6.5                          2700 bsh/hr              2400 bsh/hr                   2160 bsh/hr          2350 bsh/hr          1760 bsh/hr

           8                           2340 bsh/hr              2080 bsh/hr                   1840 bsh/hr          2110 bsh/hr          1580 bsh/hr

          10                          1980 bsh/hr              1760 bsh/hr                   1560 bsh/hr          1880 bsh/hr          1410 bsh/hr

Specifications

Roll Size:  12"x 48"

Weight:  1850 lbs

Horsepower:  60-75

Dimensions

ABC3600 Dimensions

ABC5020

Roll Configuration                    Dry Corn                High Moisture Corn                 Soybeans                    Milo                      Small Grains

           4                           6300 bsh/hr              5900 bsh/hr

         6.5                          4050 bsh/hr              3600 bsh/hr                   3420 bsh/hr          3525 bsh/hr          2640 bsh/hr

           8                           3510 bsh/hr              3120 bsh/hr                   2760 bsh/hr          3165 bsh/hr          2370 bsh/hr

          10                          2970 bsh/hr              2640 bsh/hr                   2340 bsh/hr          2820 bsh/hr          2115 bsh/hr

Specifications

Dimensions

Roll Size:  14"x 54"

Weight:  5500 lbs

Horsepower:  100, 1800RPM

Power Requirements

200 amp 480V 3 phase breaker

135 kW or 170 kVA


Automatic Equipment Manufacturing has been building innovative products for the agricultural market  since 1925.  Our fourth generation,

family owned company, builds Automatic mills in a factory located on the founder's original family farm in Pender, Nebraska.
